The machine tool spindle is the most important part of the machine tools. The traditional machine tool spindles are driven by gearing. CAEC electric spindles are the embedded motor spindles, which drive the shaft directly to work by driving power. So our high frequency spindles reallize the compounding of motor and shaft.
The electric spindle for grinding have MD, MDF, MDT, MDS, MDK series. Grinding spindles are characterized by high precision, high speed, high power and high rigidity. Tool grinding spindles are widely used in internal grinding, external grinding, forming grinding, thread grinding, etc.
►Product features of grinding spindle:
1.Constant power section design reduces the cost of the inverter.
2.Reliable life with the application of P4 precision ceramic ball bearings.
3. Low heat loss with use of Copper rotor motor or imported motor.
Based on the above features, our high frequency and high speed spindles play the important role in improving the production efficiency and machining quality.
►Application of spindles for grinding: suitable for internal grinding, external grinding, broach grinding and thread grinding.
►Technical parameters of grinding spindle:
| Type | Motor parameter | Dimension | | |
| | Power
(KW)
S6/ S1 | Voltage
(V) | Current
(A)
S6/ S1 | Speed
(r/min) | Frequency
(Hz) | D | L | D1 | L1 | D2 | L2 | d1 | L1 | M | L2 | Bearing P4 | Remark |
| 80MD150Y0.8 | 0.8/0.5 | 360 | 3/1.43 | 150000 | 2500 | 80 | 110 | 8 | 12 | - | - | 3.175 | 14 | - | - | 1-VEB08/NS 1-VEB08/NS | |
| 80MD120Y0.9 | 0.9/0.55 | 220 | 4.6/2.8 | 120000 | 2000 | 80 | 150 | 48 | 8 | 10 | 5 | 5 | 9 | M5 | 8 | 1-VEB10/1-VEB10 | 2GDZ120 |
| 80MD90Y2.5 | 2.5/1.5 | 220 | 10.8/6.5 | 90000 | 1500 | 80 | 170 | 58 | 22 | 11 | 10 | 6 | 11 | M6 | 11 | 2-B7001/1-B7001 | GDZ90 |
| 100MD90Y3 | -/3 | 350 | -/8 | 90000 | 1500 | 100 | 165 | 80 | 24 | 16 | 8 | 9 | 16 | M8X2 | 21 | 2-7003CE/2-7002CE | |
| 120MD75Y3.5 | 3.5/2.1 | 350 | 9/5.4 | 75000 | 1250 | 120 | 190 | 12 | 24 | 16 | 9 | 9 | 17 | M9*1.25 | 14 | 2-B7003/2-B7001 | 2GDZ75 |
| 80MD60Y1.5 | 1.5/0.9 | 153 | 9/5.4 | 60000 | 1000 | 80 | 160 | 55 | 24 | 14 | 9 | 8 | 16 | M8 | 14 | 2-B7002/1-B7002 | DZ60B |
| 100MD60Y4 | 4/2.5 | 350 | 10/6.3 | 60000 | 1000 | 100 | 185 | 66 | 24 | 16 | 8 | 8 | 13 | M8*1 | 15 | 2-B7003/2-B7003 | GDZ60B |
| 120MD60Y6 | 6/3.6 | 350 | 16/10 | 60000 | 1000 | 120 | 220 | 70 | 11 | 18 | 11 | 10 | 19 | M10*1.5 | 19 | 2-B7004/2-B7003 | 2GDZ60 |
| 120MD60Y7 | -/7 | 380 | -/15 | 60000 | 1000 | 120 | 222 | 90 | 28 | 23 | 10 | 14 | 22 | M14*1.5 | 20 | 2-H71905HQ1/2-H71904HQ1 | |
| 120MD51Y8 | 8/4.8 | 350 | 20/12 | 51000 | 850 | 120 | 250 | 70 | 12 | 23 | 13 | 14 | 23 | M14*1.5 | 19 | 2-B7005/2-B7004 | 2GDZ51 |
| 120MD48Y5.8 | 5.8/3.5 | 350 | 15/9 | 48000 | 800 | 120 | 230 | 80 | 23 | 23 | 14 | 14 | 24 | M14*1.5 | 19 | 2-B7005/2-B7004 | GDZ48 |
| 120MD42Y9 | 9/5.5 | 350 | 20/12 | 42000 | 700 | 120 | 230 | 90 | 27 | 23 | 12 | 14 | 24 | M14*1.5 | 19 | 2-B7005/2-B7004 | GDZ42S |
| 120MD36Y8.5 | 8/5.5 | 350 | 18/11 | 36000 | 600 | 120 | 255 | 92 | 30 | 28 | 12 | 16 | 27 | M16*1.5 | 20 | 2-B7006/2-B7005 | GDZ36B |
| 120MD36Y8.5C | 8/5.5 | 350 | 18/11 | 36000 | 600 | 120 | 255 | 92 | 28 | 33 | 15 | 20 | 34 | M20*1.5 | 20 | 2-B7007/2-B7005 | GDZ36C |
| 150MD36Y11 | 11/7 | 350 | 30/15.6 | 36000 | 600 | 150 | 270 | 105 | 32 | 33 | 14 | 20 | 34 | M20*1.5 | 20 | 2-B7007/2-B7006 | 2GDZ36 |
| 150MD36Y11A | -/11 | 360 | /22 | 36000 | 1200 | 150 | 270 | 116 | 30 | 33 | 13 | 20 | 34 | M20*1.5 | 20 | 2-B7007/2-B7006 | |
| 120MD30Y11 | 11/6.6 | 350 | 30/17.8 | 30000 | 1000 | 120 | 315 | 70 | 10 | 33 | 7 | 20 | 34 | M20*1.5 | 19 | 2-B7007/2-B7006 | 2GDZ30N |
| 120MD24Y12 | 12/7.2 | 350 | 30/18 | 24000 | 800 | 120 | 315 | 70 | 10 | 43 | 8 | 22 | 38 | M22*2 | 24 | 2-B7009/2-B7006 | 2GDZ24N |
| 150MD24Y12.5 | 12.5/7.5 | 350 | 26.7/16 | 24000 | 400 | 150 | 310 | 98 | 32 | 38 | 19 | 22 | 38 | M22*2 | 26 | 2-B7008/2-B7007 | GDZ24A |
| 150MD24Y16 | 16/10 | 350 | 38/23 | 24000 | 800 | 150 | 320 | 105 | 30 | 43 | 18 | 25 | 42 | M25*2 | 25 | 2-B7009/2-B7007 | 2GDZ24 |
| 150MD24Y16A | -/16 | 380 | -/30 | 24000 | 800 | 150 | 331 | 122 | 37 | 47 | 16 | 28 | 44 | M28*2 | 25 | 2-B7010/2-B7009 | |
| 170MD24Y22 | 22/14 | 350 | -/30.2 | 24000 | 800 | 120 | 305 | 110 | 40 | 43 | 22 | 25 | 42 | M25*2 | 24 | 2-B7009/HQ12-B7008/HQ1 | |
| 150MD18Y14.5 | 14.5/8.6 | 350 | 32/20 | 18000 | 300 | 150 | 327 | 110 | 38 | 43 | 22 | 25 | 40 | M25*2 | 30 | 2-B7009/2-B7008 | GDZ18A |
| 170MD18Y16 | 16/10 | 350 | 35/21.2 | 18000 | 600 | 170 | 305 | 110 | 40 | 43 | 22 | 25 | 42 | M25*2 | 24 | 2-B7009/2-B7008 | GDZ18R |
| 170MD15Y20 | 20/12 | 350 | 46.3/27.8 | 15000 | 500 | 170 | 320 | 116 | 38 | 53 | 17 | 32 | 50 | M30*2 | 25 | 2-B7011/2-B7009 | 2GDZ15 |
| 170MD15Y16 | 16/10 | 350 | 35/21.2 | 15000 | 500 | 170 | 325 | 116 | 38 | 48 | 24 | 28 | 47 | M28*2 | 25 | 2-B7010/2-B7009 | GDZ15R |
| 170MD15Y25A | -/25 | 380 | -/46 | 15000 | 500 | 170 | 414 | 140 | 38 | 53 | 18 | 32 | 49 | M32*2 | 23 | 2-B7012/2-B7010 | |
| 200MDF15Y28 | 28/18 | 380/300 | 44/35 | 15000
/8000 | 500/267 | 200 | 430 | 140 | 42 | 53 | 25 | 32 | 50 | M30*2 | 28 | 2-B7011/2-B7010 | |
| 170MD12Y16 | 16/10 | 350 | 36/22 | 12000 | 400 | 170 | 330 | 124 | 40 | 53 | 22 | 36 | 40 | M33*2 | 30 | 2-B7011/2-B7009 | GDZ12R-10 |
| 170MD12Y20 | 20/12 | 350 | 41.5/25 | 12000 | 400 | 170 | 370 | 124 | 40 | 53 | 22 | 36 | 40 | M33*2 | 30 | 2-B7011/2-B7009 | GDZ12R-12 |
| 170MD12Y32 | 32/20 | 350 | 36/22 | 12000 | 400 | 170 | 370 | 124 | 40 | 53 | 22 | 36 | 40 | M33*2 | 30 | 2-B7011/2-B7009 | |
| 250MD10Y17 | 17.6/11 | 350 | 38.5/24 | 10000 | 334 | 250 | 350 | 140 | 15 | 53 | 28 | 25 | 35 | M24*1.5 | 33 | 2-B7011/2-B7009 | |
| 170MD09Y20 | 20/12.5 | 350 | 43/26.9 | 9000 | 300 | 170 | 383 | 124 | 40 | 53 | 22 | 36 | 40 | M33*2 | 30 | 2-B7011/2-B7009 | GDZ09 |
| 210MD09Y33 | 33/20.6 | 350 | 70/43.8 | 9000 | 300 | 210 | 403 | 140 | 44 | 55 | 54 | - | - | Cone 1:8 | | 2-B7212/2-B7009 | 2GDZ09 |
| 210MD09Y33B | -/33 | 350 | 70 | 9000 | 300 | 210 | 522 | 165 | 70 | 68 | 53 | 45 | 55 | M42*2 | 40 | 3-7014/2-7211 | |
| 210MD06Y20 | -/20 | 350 | 42.5 | 6000 | 200 | 210 | 491 | 140 | 44 | 55 | 54 | - | - | Cone 1:8 | 46 | 2-7212/2-B7009 | |
| 200MD06Y20 | -/20 | 380 | - | 6000 | 200 | 200 | 557 | 165 | 20 | 77 | 123 | - | - | Cone 1:10 | 66 | 4-7016/2-7011 | |
| 120MD75Z3.5 | 3.5/2.2 | 350 | -/9 | 75000 | 1250 | 120 | 190 | 65 | 24 | 16 | 9 | 9 | 17 | M9*1.25 | 14 | 2-H71903HQ1/2-H7001HQ1 | |
| 100MD60Z4 | 4/2.5 | 350 | 10/6.3 | 60000 | 1000 | 100 | 185 | 76 | 26 | 16 | 8.5 | 8 | 14 | M8*1 | 15 | 2-H7003HQ1/2-H7003HQ1 | |
| 120MD48Z7 | 7/4.5 | 350 | 15.6/9.8 | 48000 | 800 | 120 | 230 | 90 | 25.5 | 23 | 11.5 | 14 | 24 | M14*1.5 | 19 | 2-H7005HQ1/2-H7004HQ1 | |
| 120MD36Z9.5A | 9.5/6 | 350 | -/12.6 | 36000 | 600 | 120 | 255 | 94 | 36 | 28 | 14 | 16 | 27 | M16*1.5 | 20 | 2-H7006HQ1/2-H7005HQ1 | |
| 150MD36Z11A | -/11 | 360 | -/22 | 36000 | 1200 | 150 | 270 | 116 | 30 | 33 | 13 | 20 | 34 | M20*1.5 | 20 | 2-H7007HQ1/2-H7006HQ1 | |
| 120MD24Z5.5 | 5.5/3.3 | 250 | 18/11 | 24000 | 400 | 120 | 255 | 92 | 30 | 28 | 12 | 16 | 27 | M16*1.5 | 20 | 2-B7006/2-B7005 | GDZ24K |
| 150MD24Z16 | 16/10 | 350 | 38/24 | 24000 | 800 | 150 | 327 | 121 | 30 | 43 | 19 | 25 | 42 | M25*2 | 25 | 2-B7009HQ1/2-H7007HQ1 | |
| 150MD24Z16-YT | -/16 | 380 | -/30 | 24000 | 800 | 150 | 331 | 122 | 37 | 47 | 16 | 28 | 44 | M28*2 | 25 | 2-H7010HQ1/2-H7009HQ1 | |
| 150MD18Z9 | 9/5.5 | 350 | 22.4/13.5 | 18000 | 300 | 150 | 290 | 95 | 40 | 38 | 18 | 22 | 36 | M22*2 | 28 | 2-B7008/2-B7007 | DZ18B |
| 170MD18Z16 | 16/10 | 350 | -/19.7 | 18000 | 300 | 170 | 340 | 120 | 46 | 43 | 20 | 25 | 42 | M25*2 | 26 | 2-B7009/2-B7007 | GDZ18G |
| 170MD15Z25 | -/25 | 380 | -/46 | 15000 | 500 | 170 | 414 | 140 | 38 | 53 | 18 | 32 | 49 | M32*2 | 23 | 2-H7012HQ1/2-H7010HQ1 | |
| 170MD15Z16 | 16/10 | 350 | 35/21.2 | 15000 | 500 | 170 | 325 | 116 | 38 | 48 | 24 | 28 | 47 | M28*2 | 25 | 2-B7010/2-B7009 | |
| 170MD15Z20 | 20/12 | 350 | 46.3/27.8 | 15000 | 500 | 170 | 320 | 116 | 38 | 53 | 17 | 32 | 50 | - | 25 | 2-B7011/2-B7009 | |
| 170MD12Z20 | 20/12 | 350 | 41.5/25 | 12000 | 400 | 170 | 370 | 124 | 40 | 53 | 22 | 36 | 40 | M33*2 | 30 | 2-B7011/2-B7009 | |
| 160MDF09Z9 | -/9 | 350 | 19 | 9000 | 300 | 160 | 280 | 120 | 42 | 38 | 18 | | | | 60 | 2-H7009HQ1/2-H7007HQ1 | |
| 170MD07Z8.5 | 8.5/5 | 350 | 19/11.5 | 7000 | 234 | 170 | 320 | 120 | 117 | 50 | 24 | 33 | 52 | M33*1.5 | 27 | 3-VEX55/2-VEX45 | |
| 170MD09Z20 | 20/12.5 | 350 | 43 | 9000 | 300 | 170 | 383 | 124 | 70 | 50 | 24 | | | | | 3-B7011/2-B7009 | |
| 210MD09Z33 | 33/20.6 | 350 | 70/43.8 | 9000 | 300 | 210 | 403 | 140 | 44 | 55 | 54 | | | | | 2-B7212/2-B7009 | 2GDZ09 |
| 170MD07Z8.5W | 8.5/5 | 350 | 19/11.5 | 7000 | 234 | 170 | 320 | 120 | 117 | 50 | 74 | | | | | 3-VEX55/2-VEX45 | 2GDZ07 |
| 200MD06Z8 | -/8 | 380 | -/15 | 6000 | 100 | 200 | 370 | 150 | 97 | 57 | 54 | | | | | 3-B7012/2-B7010 | |
| 200MD06Z20 | -/20 | 350 | 42.5 | 6000 | 200 | 200 | 491 | 150 | 58 | 50 | 80 | | | | | 2-7212AC/2-7009AC | |
| 230MDF06Z40 | -/40 | 380 | 75 | 6000 | 200 | 230 | 763 | - | - | - | - | | | | | 4-B7017/2-7013 | |
| 180MD03Z10B | -/10 | 380 | 21 | 3000 | 100 | 180 | 530 | 165 | 20 | - | - | | | | | 4-7016/2-7011 | |
| 200MD03Z12 | 12/8 | 350 | 18.5 | 3000
/2100 | 100/70 | 200 | 470 | 165 | 100 | 75 | 15 | | | | | 4-7016/2-7010 | |
| 240MD03Z16 | -/16 | 380 | -/32 | 3000 | 100 | 240 | 415 | 178 | 104 | 80 | 20 | | | | | 4-7017/2-7013 | |
| 260MD03Z24B | 15 | 380/350 | 33/36 | 3000/
1500 | 100/50 | 260 | 423 | 165 | 57 | 75 | 15 | | | | | 3-7016/2-7013 | |
| 240MD015Z10 | 10/6.25 | - | 30/18.7 | 1500 | 50 | 240 | 410 | 190 | 92 | 85 | 24 | | | | | 3-7017/2-7012 | GDZ015 |
| 80MD150Q0.8 | 0.8/5.5 | 350 | 3/1.43 | 150000 | 2500 | 80 | 110 | 8 | 12 | - | - | 3.175 | 14 | - | - | 1-VEB08NS/1-VEB08NS | |
| 80MD120Q0.9 | 0.9/0.55 | 220 | 4.6/2.8 | 120000 | 2000 | 80 | 150 | 48 | 8 | 10 | 5 | 5 | 9 | M5 | 8 | 1-VEB10/1-VEB10 | |
| 120MD100Q2.5 | -/2.5 | 200 | -/9 | 100000 | 1667 | 120 | 177 | 75 | 3.5 | 19 | 8 | 11 | 8 | M10*1.25 | 12 | 1-71904/1-71903 | |
| 120MD75Q8 | 85 | 350 | 18.4/11.5 | 75000 | 1250 | 120 | 210 | 80 | 25 | 18.5 | 13 | 10 | 19 | M1081.5 | 19 | 2-VEX20NS/2-VEX17NS | |
| 100MD60Q6 | 6/3.6 | 350 | 16/10 | 60000 | 1000 | 100 | 255 | - | - | 28 | 9 | 8 | 16 | M8*1 | 15 | 2-VEX30NS/2-VEX20NS | 2GDZ60Q |
| 100MD60Q9 | -/9 | 350 | 13.3 | 60000 | 1000 | 100 | 255 | - | - | 28 | 9 | 16 | 23 | M16*1.5 | 30 | 2-VEX30NS/2-VEX20NS | |
| 140MD60Q9 | 9/5.5 | 350 | 13.3/8.3 | 60000 | 1000 | 149.8 | 260 | 129.7 | 50 | 53 | 13.5 | 16 | 25 | M16*1.5 | 19 | 2-VEX30NS/2-VEX25NS | |
| 170MD60Q(HW) | 7.5/4.5 | 380 | 14.4/9 | 48000
/60000 | 800/1000 | 170 | 220 | - | - | 28 | 6.5 | 16 | 24 | M16*1.5 | 20 | 2-VEX30NS/2-VEX25NS | |
| 120MD51Q8 | 8/4.8 | 350 | 20/12 | 51000 | 850 | 120 | 232 | 80 | 30 | 23 | 10 | 14 | 23 | M14*1.5 | 19 | 2-B7005/2-B7004 | |
| 170MD36Q13.6 | 13.6/8.5 | 350 | 28.6/18 | 36000 | 600 | 170 | 390 | 115 | 47 | 43 | 32 | 25 | 38 | M25*2 | 29 | 2-VEX45NS/2-VEX35NS | |
| 120MD30Q12 | 19/12 | 350 | 49/31 | 30000 | 1000 | 120 | 370 | - | - | 43 | 15 | 28 | 44 | M28*2 | 29 | 2-VEX45NS/2-VEX30NS | |
| 170MD30Q32H | 32/21 | 350 | 46 | 30000 | 1000 | 170 | 340 | 126 | 45 | 53 | 27 | 32 | 46 | M32*2 | 25 | 2-H7011CHQ1/2-H7009CHQ1 | |
| 150MD30Q23 | 23/14.4 | 380 | 49/30 | 30000 | 1000 | 149.8 | 260 | 129.7 | 50 | 53 | 13.5 | 32 | 50 | M32*2 | 26 | 2-VEX55NS/2-VEX40NS | |
| 150MD21Q18 | 18/11 | 380 | 35.5/21.4 | 21000 | 350 | 150 | 320 | 110 | 38 | 43 | 18 | 25 | 40 | M25*2 | 30 | 2-B7009/2-B7008 | |
| 170MD24Q30H | 30/19 | 350 | 41 | 24000 | 800 | 170 | 340 | 136 | 45 | 63 | 27 | 36 | 50 | M36*2 | 30 | 2-H7014CHQ1/2-H7009CHQ1 | |
| 170MD12Q40H | 40/30 | 350 | 58 | 12000 | 600 | 170 | 415 | 137 | 49 | 68 | 27 | 40 | 50 | M40*2 | 30 | 2-H7014CHQ1/2-H7009CHQ1 | |
| 210MD09Q46H | 46/33 | 350 | 70 | 9000 | 300 | 210 | 560 | 190 | 24 | 97 | 30 | 48 | 55 | M48*2 | 40 | 2-H7020CHQ1/2-7211CP4 | |
►Main series of motor grinding spindle:
MD,MDF,MDT series High frequency Spindles for Grinding
XD,XDS,XDJ series High frequency Spindles for Milling
CD,CDS,CDJ series High-frequency Spindles for Turning
DZ,DZS series High-frequency Spindles for Drilling
►Types of motor grinding spindle:
►The brief introduction of spindle workshop:
In 1958, we set the 308 Research Group to develop the spindles. After more than 60 years of development, it has gradually developed from the original scientific research institution into the company which collects the spindle research, development and production as a whole. The production area of spindle workshop reached 32,800 square meters. Luoyang Bearing Research Institute Co., Ltd. is the main drafting unit of spindle national standard, the chairman unit of the spindle branch of China Machine Tool Industry Association, the leader of the 863 spindle project, the responsible unit of the "Eighth Five-Year Plan", "Ninth Five-Year Plan", "Tenth Five-Year Plan" and major national science and technology projects for CNC machine tool spindle. It is also the location of Henan Machine Tool Spindle Engineering Technology Research Center.
We has an annual production capacity of 6000 sets of spindles
►The Milestone of spindle products:
- 1958 China's first electric spindle
- 1980 China's first pneumatic static spindle
- 1995 China's first machining center spindle
- 1999 China's first engraving and milling spindle
- 2006 China's first precision turning spindle
- 2016 China's first permanent magnet workpiece spindle
- 2017 Research and development of high-end machining center electric spindle
- 2018 Research and development of intelligent spindle
►Manufacturing capacity of grinding spindle:
►Package of grinding spindle:

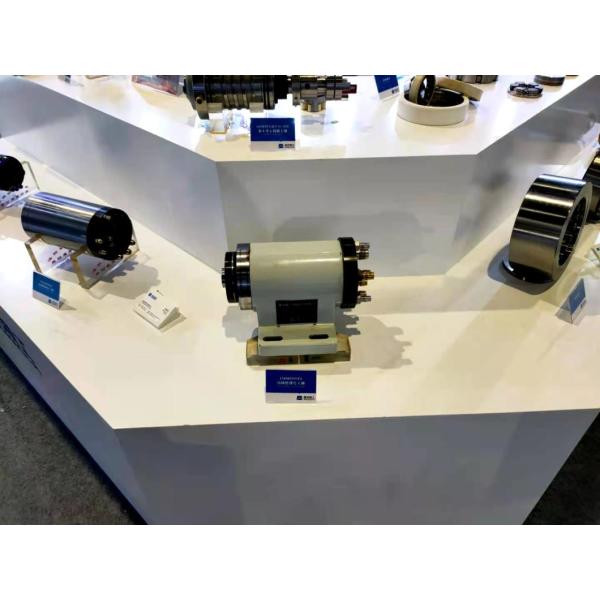

►Exhibition of grinding spindle:
